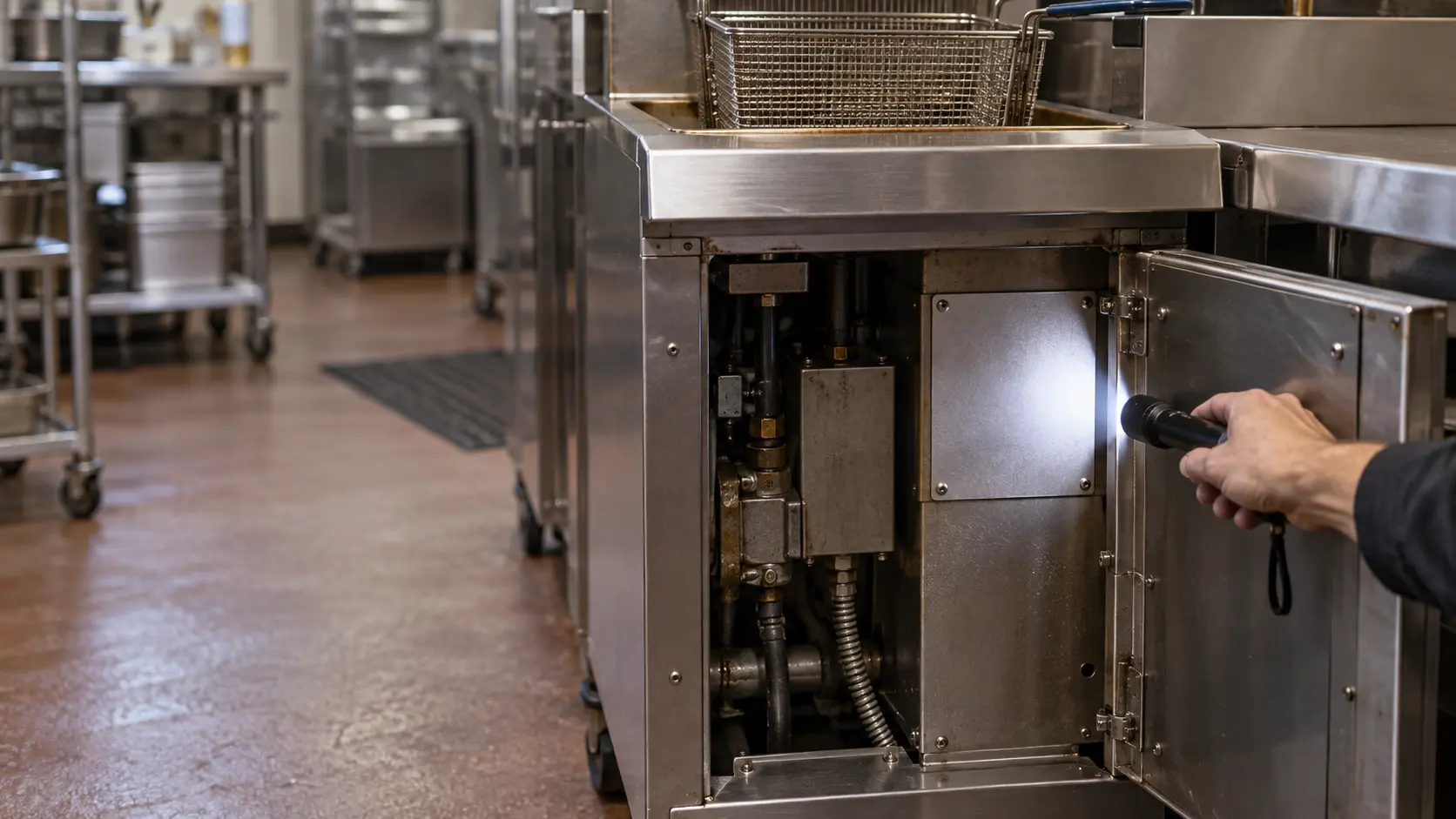

The open lower door of a stainless commercial gas fryer on a restaurant cooking line, a blank riveted metal data plate with no readable marks inside the fryer door lit by a small flashlight held in a hand seen only to the wrist, the fryer's cooled oil vat and a hanging basket just visible above, nothing outdoors.

Troubleshooting

Where the data plate hides on restaurant equipment: fryer doors, cabinet corners and the screen

A commercial equipment data plate lists the model and serial number, the electrical supply, and the fuel on gas-fired units. Look in the upper right of a Traulsen reach-in, on the inside left wall of a Victory reach-in, inside the door of Frymaster, Pitco and Henny Penny fryers, on top of the door on a Hobart LXn, and in the settings screen of a Rational combi.

By Published

(844) 571-4566

Mon–Sat, 8am–8pm

  • Safe checks with the unit off
  • 5-minute read
  • Across every type and make

Book a visit

Three short steps, about a minute.

or call (844) 571-4566

At a
glance.

The commercial equipment data plate carries the model and serial number, the voltage and phase, and for gas equipment the fuel it was set up for, and no two makers put it in the same place. Finding it before the technician arrives saves a second trip for the wrong part.

Read the whole guide

What it listsModel, serial, volts, phase, gas

The figures a building's supply has to match.

FryersInside the fryer door

Frymaster, Pitco and Henny Penny all use the door.

Reach-insInside the cabinet, upper corner or side wall

Traulsen upper right; Victory on the inside of the left wall.

CombisOn the screen as well

Rational shows the serial number in its settings and error messages.

What the commercial equipment data plate tells a technician

The data plate is the unit's identity card. The model and serial number decide which parts fit, and the supply figures record what the unit was built to run on. Frymaster's gas fryers are to be connected through a regulator set to the manifold pressure marked on the rating plate, and a fryer stamped NAT, PRO or MFG is to be connected only to natural, propane or manufactured gas respectively.

On cold storage the plate usually adds the refrigerant and its charge. Victory tells installers to rely on the equipment data plate for amps, refrigerant and refrigerant charge as the most up-to-date values. Those lines mean little to the crew and a great deal to the technician deciding what to load into the van.

  • Model number and serial number
  • Voltage, phase and amps, or the circuit size
  • Gas type and manifold pressure on gas units
  • Refrigerant type and charge on cold storage
  • Listing and sanitation marks from the testing agencies

Copy every plate before you need it

Photograph every plate in the building on a quiet afternoon and keep the pictures in one shared folder, named by station. When a unit quits at six in the evening, nobody has to empty a reach-in or pull a fryer out from the line just to read a serial number.

Source: Victory — RS/RSA reach-in installation and operation manual — Data plate on the inside of the left wall with model and serial numbers; reference it for amps, refrigerant and charge; removing or altering it releases Victory from warranty obligations; Frymaster — OCF30 / FPGL30 gas fryer installation, operation and maintenance manual (8196687) — Data plate and wiring diagram inside the fryer door; connect through a regulator set to the rated manifold pressure; NAT, PRO and MFG fryers only to that gas

Reach-ins, prep tables and walk-in coolers

Traulsen places its serial tag in the upper right of the interior on its reach-in, pass-through, roll-in and roll-through refrigerators, freezers and dual-temperature models, and uses it to record the electrical and cooling data along with the model and serial. Victory's RS reach-ins carry the data plate on the inside of the left wall, with the agency marks beside the model and serial numbers. On undercounter units and prep tables, look inside each door and behind the front grille.

A walk-in cooler has more than one plate: usually one for the insulated box, near or inside the door frame, and one on each part of the cooling system, the condensing unit outside and the evaporator inside. The condensing unit's plate is the one parts depend on, and it often sits on a roof or in a locked mechanical room, which is why that one is left to the visit.

Leave the plate where it is

Victory's warranty terms say that removing or altering the serial or data plate releases the maker from its warranty obligations. Do not peel a plate off to clean behind it, paint over it, or stick inventory labels across it.

Source: Traulsen — R-Series owner's manual (owner's manuals page) — The serial tag, recording electrical and refrigeration data with model and serial, is in the upper right interior of reach-in, pass-thru, roll-in and roll-thru models; Victory — RS/RSA reach-in installation and operation manual — Data plate on the inside of the left wall with model and serial numbers; reference it for amps, refrigerant and charge; removing or altering it releases Victory from warranty obligations

Close on a small blank metal plate with no characters inside a reach-in cabinet door frame.
Close on a small blank metal plate with no characters inside a reach-in cabinet door frame.

Fryers, ovens and the rest of the cooking line

Fryers are the easiest. Frymaster, Pitco and Henny Penny all fix the data plate to the inside of the fryer door, and Frymaster adds a wiring diagram there too. Open the door with the fryer off or idling and read it with a flashlight; nobody should ever need to reach past the door toward the vat or the burners to find it.

Ovens vary more. Blodgett's Zephaire gas convection oven keeps its rating plate inside the control compartment, reached by pulling out the control panel, which is a task for the service visit rather than the crew. Rational's combis display the serial number in their settings and inside every error message, so a clear photo of the screen often does the job without opening anything.

When the plate is scorched or greasy

Heat and grease darken plates along the line. Wipe with a cleaner safe for stainless steel and a soft cloth, read at a low angle with a flashlight, and if the digits are gone, look for the serial on the purchase invoice, the maker's warranty registration or a label on the manual that shipped with the unit.

Source: Frymaster — OCF30 / FPGL30 gas fryer installation, operation and maintenance manual (8196687) — Data plate and wiring diagram inside the fryer door; connect through a regulator set to the rated manifold pressure; NAT, PRO and MFG fryers only to that gas; Pitco — SG series gas fryer installation and operation manual (L20-206) — The fuel type is stamped on the data plate attached to the inside of the door; Henny Penny — Pressure fryers 500, 561 and 600 operator manual (FM05-011) — Check the data plate on the inside of the fryer door for the correct power supply; Blodgett — Zephaire gas convection oven manual — The rating plate is attached inside the control compartment, reached by pulling out the control panel; Rational — iCombi Pro original instructions for use (US) — Serial number information is available in the settings and displayed in error messages

Dish machines and laundry equipment

Hobart puts the LXn data plate on top of the door, and tells the installer to confirm that the electrical supply matches it and to size the service from it before connecting. On larger door-type and conveyor machines the position changes from model to model, so read the installation pages of the manual before anyone goes looking behind a panel; the lower front panel on the LXn, for instance, hides the wiring diagram, not a place for the crew.

Laundry machines differ by model, and the manuals show it with a picture rather than words. UniMac opens its washer-extractor manual with a figure of the serial plate location and asks for the model and serial numbers whenever parts or technical help are requested. On card and coin machines the same details often appear in the control's diagnostic menu as well.

Source: Hobart — LXn / LXGn Series instructions manual (F41243) — The machine data plate is located on the top of the door; verify the electrical supply against it before installation; UniMac — washer-extractor control manual (F8552201) — Serial plate location shown in a figure; provide serial and model numbers when ordering parts or seeking technical help

What to send when you book

A plate photo only helps if it can be read. Stand square to it, fill the frame, and take a second shot with the flash off if the first one glares. Then add the few details a plate cannot tell anyone.

  • A sharp photo of the whole plate, every line readable
  • Where the unit sits on the line or in the room
  • Whether a gas unit is on a quick disconnect and flexible connector
  • The controller message and when it first appeared
  • The purchase date and the maker's warranty paperwork if it is still in term
