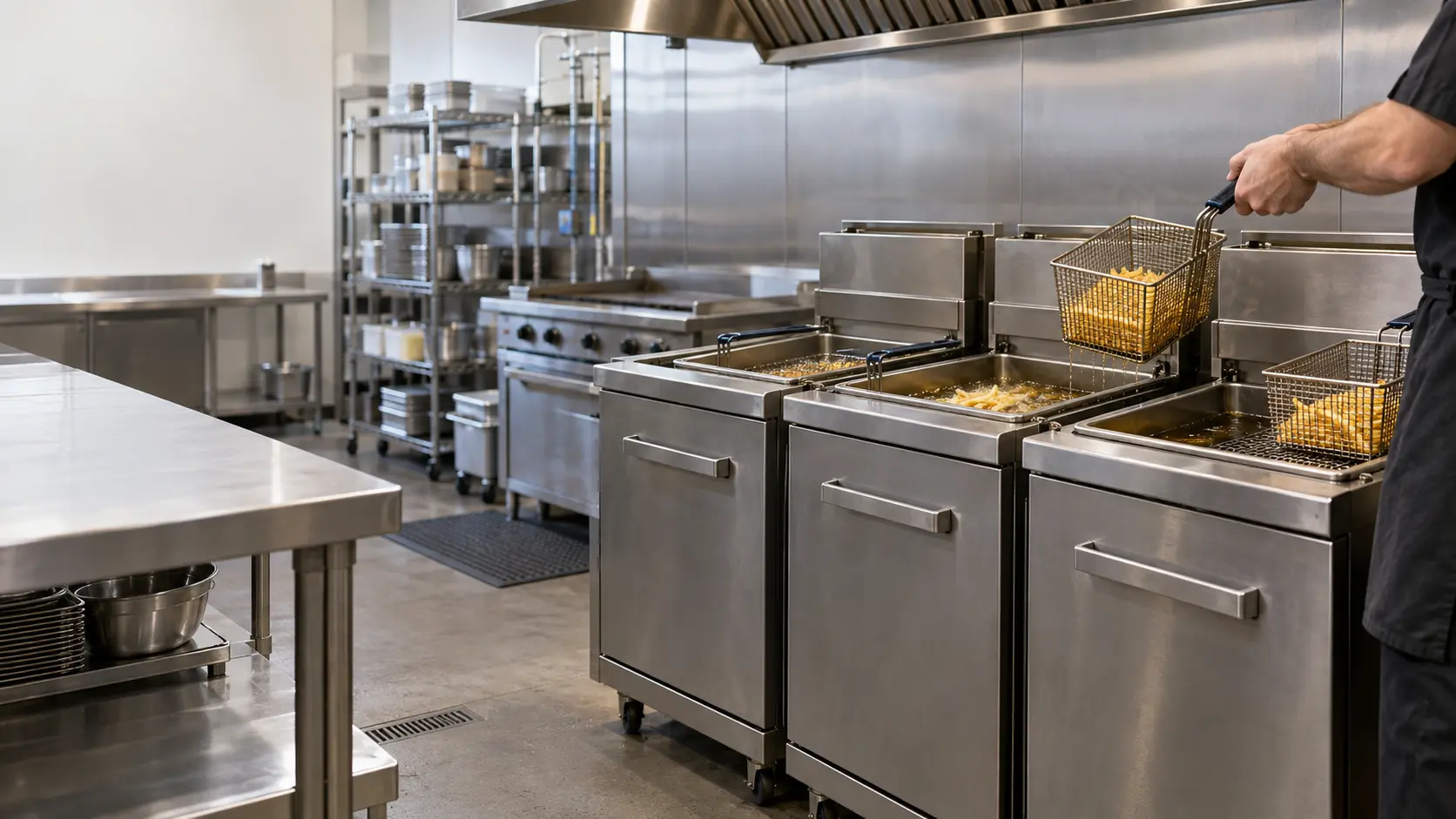

A bank of three stainless commercial gas fryers on a restaurant cooking line beneath a stainless exhaust canopy, golden oil in each fryer vat and a wire basket of fries hanging on the rack to drain, a cook seen from the shoulders down in a dark apron lifting a second basket, a stainless worktop beside the fryers, nothing outdoors.

Common problems

Why a fryer will not hold temperature: slow recovery, tired oil and a probe that reads wrong

A fryer not holding temperature is most often overloaded baskets, frozen product dropped in too large a batch, tired oil, a fan or flue disturbing the burners, or gas pressure shared with a busy line. Compare a good thermometer with the fryer's own probe, time the recovery, and book a visit if the high-limit trips or the burners light late.

By Published

(844) 571-4566

Mon–Sat, 8am–8pm

  • What the box, the vat and the drum are telling you
  • 4-minute read
  • Across every type and make

Book a visit

Three short steps, about a minute.

or call (844) 571-4566

At a
glance.

A fryer not holding temperature shows up at the pass long before it shows up on a screen: limp fries, greasy fish, baskets that need an extra minute every hour of the rush. The cause sits in one of four places, the load, the oil, the air and gas around the burners, or the parts that measure and limit the heat.

Read the whole guide

Gas recovery limit on one Frymaster model2 minutes 25 seconds

The OCF30 controller flags a gas recovery that takes longer.

Low-temperature alarm, same controller30°F under setpoint idle, 45°F while cooking

Other makers use their own thresholds; the idea is the same.

High-limit trip pointAbout 423°F to 447°F

Frymaster's figure for its non-CE high limits; a trip is a service call.

How to test the readingA good thermometer touching the probe

Frymaster's own method for comparing oil and display.

What losing temperature looks like on a busy fryer

Every fryer dips when a basket of frozen product goes in; what matters is how far it falls and how fast it climbs back. Frymaster's manual for its OCF30 gas fryer gives the controller a recovery limit of two minutes and twenty-five seconds for gas, and raises an alarm when the oil sits 30°F under the setpoint at idle or 45°F under it during a cook. Other makers publish different numbers, but every modern controller is timing that same climb.

The crew usually notices before the controller does. Fries come out pale and oily, breading soaks up fat, cook times creep longer, or a fryer that keeps up at three in the afternoon falls behind at seven. Ask which vat, which product and what hour, because a single slow fryer points at that unit while a whole bank points at gas, air or the menu.

Questions to put to the crew

  • Which vat, and is its neighbor keeping up?
  • Which product: frozen, fresh, breaded, battered?
  • Only at peak, or from the first basket of the day?
  • Did the display show a message, and what did it say word for word?
  • When was the oil last filtered, and when was it last changed?

Source: Frymaster — OCF30 / FPGL30 gas fryer installation, operation and maintenance manual (8196687) — Gas recovery should not exceed 2:25; low-temperature alarm at 30°F below setpoint idle or 45°F cooking; filter at closing and clean the filter pan daily; boil-out removes frypot film; an extended flue or undersized gas line causes slow recovery; compare a thermometer touching the probe; non-CE high limit opens at 423°F to 447°F

Load size, frozen product and tired oil

The cheapest explanation is the load. A basket filled past the line, product dropped straight from the freezer with a coat of ice crystals, or two baskets working a vat sized for one will pull the oil down faster than any burner or element can answer. Shake off frost, portion to the size the menu was built on, and stagger drops across vats during the rush.

Oil condition matters too. Frymaster asks crews to filter the oil and clean the fryer at closing and to clean the filter pan daily, and it describes a film that forms inside the frypot and has to be removed periodically with a boil-out. Crumbs, carbon and that varnish slow the transfer of heat from the frypot wall into the oil and can blanket the probe.

Oil level and where the probe sits

Keep oil at the fill mark stamped in the frypot. As the level drops through a shift, the temperature probe ends up near the surface, reading a thin layer that heats and cools in a hurry, and the burner or elements start working in short, uneven bursts. Topping off before service is far cheaper than a slow Friday.

Source: Frymaster — OCF30 / FPGL30 gas fryer installation, operation and maintenance manual (8196687) — Gas recovery should not exceed 2:25; low-temperature alarm at 30°F below setpoint idle or 45°F cooking; filter at closing and clean the filter pan daily; boil-out removes frypot film; an extended flue or undersized gas line causes slow recovery; compare a thermometer touching the probe; non-CE high limit opens at 423°F to 447°F

Close on the temperature probe inside an empty, cool fryer vat.
Close on the temperature probe inside an empty, cool fryer vat.

Air at the flue and gas to the burners

Gas fryers need calm air at the flue. Pitco warns that aiming a blower straight at the flue openings causes poor temperature recovery and poor ignition and can put out the pilot, and Frymaster says an extended flue, or one placed close to the exhaust fan intake, changes combustion and lengthens recovery. A new fan, a moved makeup-air diffuser or an exhaust system rebalanced last month belongs on the list of suspects.

Gas is shared across the line. Frymaster notes that a supply pipe too small for the load drops pressure at the burner manifold and brings slow recovery and delayed ignition. If the fryer only falls behind when the charbroiler, griddle and combi are all firing, it may be starved of gas rather than failing, and the answer lies with a gas fitter, not the crew.

Electric fryers and a missing element

Electric models trade burners for elements, so recovery depends on every element getting power. A tripped breaker on one leg of a three-phase supply or a burned contactor can leave a vat heating on part of its elements, which looks exactly like a slow recovery. The breaker is a manager's check; the terminals behind the fryer's lower panel are not.

Source: Frymaster — OCF30 / FPGL30 gas fryer installation, operation and maintenance manual (8196687) — Gas recovery should not exceed 2:25; low-temperature alarm at 30°F below setpoint idle or 45°F cooking; filter at closing and clean the filter pan daily; boil-out removes frypot film; an extended flue or undersized gas line causes slow recovery; compare a thermometer touching the probe; non-CE high limit opens at 423°F to 447°F; Pitco — SG series gas fryer installation and operation manual (L20-206) — Never connect a blower directly to the flue openings, which causes poor temperature recovery and poor ignition and can put out the pilot; the manual carries a thermostat calibration procedure

The probe, the thermostat and the high-limit

The controller only knows what its probe tells it. Frymaster's check is simple: put a good-grade thermometer or pyrometer into the oil with its tip touching the fryer's own probe and compare the two figures. A few degrees apart is ordinary; a wide, steady gap points to calibration or a probe on its way out, and Pitco's manual includes a thermostat calibration procedure for exactly that visit.

The high-limit is a separate safety device that cuts the heat if the oil runs far too hot. Frymaster says its non-CE high limit opens once the oil reaches somewhere between 423°F and 447°F. A fryer that has tripped it, or one showing a high-limit or probe message, is shut down and left for a technician; it is not reset and pushed back into service to finish the shift.

Signs it is a part rather than the load

  • The same vat is slow at every hour and with every product
  • Thermometer and display disagree by a wide, steady margin
  • Burners light late, with a thump or a roll of flame
  • The controller shows a probe, heating or high-limit message
  • An electric vat glows on fewer elements than the one beside it

Source: Frymaster — OCF30 / FPGL30 gas fryer installation, operation and maintenance manual (8196687) — Gas recovery should not exceed 2:25; low-temperature alarm at 30°F below setpoint idle or 45°F cooking; filter at closing and clean the filter pan daily; boil-out removes frypot film; an extended flue or undersized gas line causes slow recovery; compare a thermometer touching the probe; non-CE high limit opens at 423°F to 447°F; Pitco — SG series gas fryer installation and operation manual (L20-206) — Never connect a blower directly to the flue openings, which causes poor temperature recovery and poor ignition and can put out the pilot; the manual carries a thermostat calibration procedure

A restaurant team working a busy commercial kitchen line.
For the heart of your home.

Questions
owners ask.

Why are the fries greasy when the display shows the setpoint?
The display shows the oil at rest. If each drop pulls the oil well down and it takes minutes to come back, the product spends most of its time far below the setpoint. Time a recovery after a normal drop and compare it with the manual.
Can old oil really slow a fryer down?
Indirectly, yes. Carbon, crumbs and varnish on the frypot walls slow the heat and can insulate the probe. Filtering daily and boiling out on schedule, as the makers describe, keeps the vat reading true.
Is it safe to reset a tripped high-limit ourselves?
No. It opened because the oil reached a temperature the fryer should never reach, and whatever let that happen has to be found first. That is a service call.
Why is only one fryer in the bank falling behind?
Shared gas pressure and room air would slow all of them, so a single slow vat usually points to its own probe, burner, ignition or elements.
