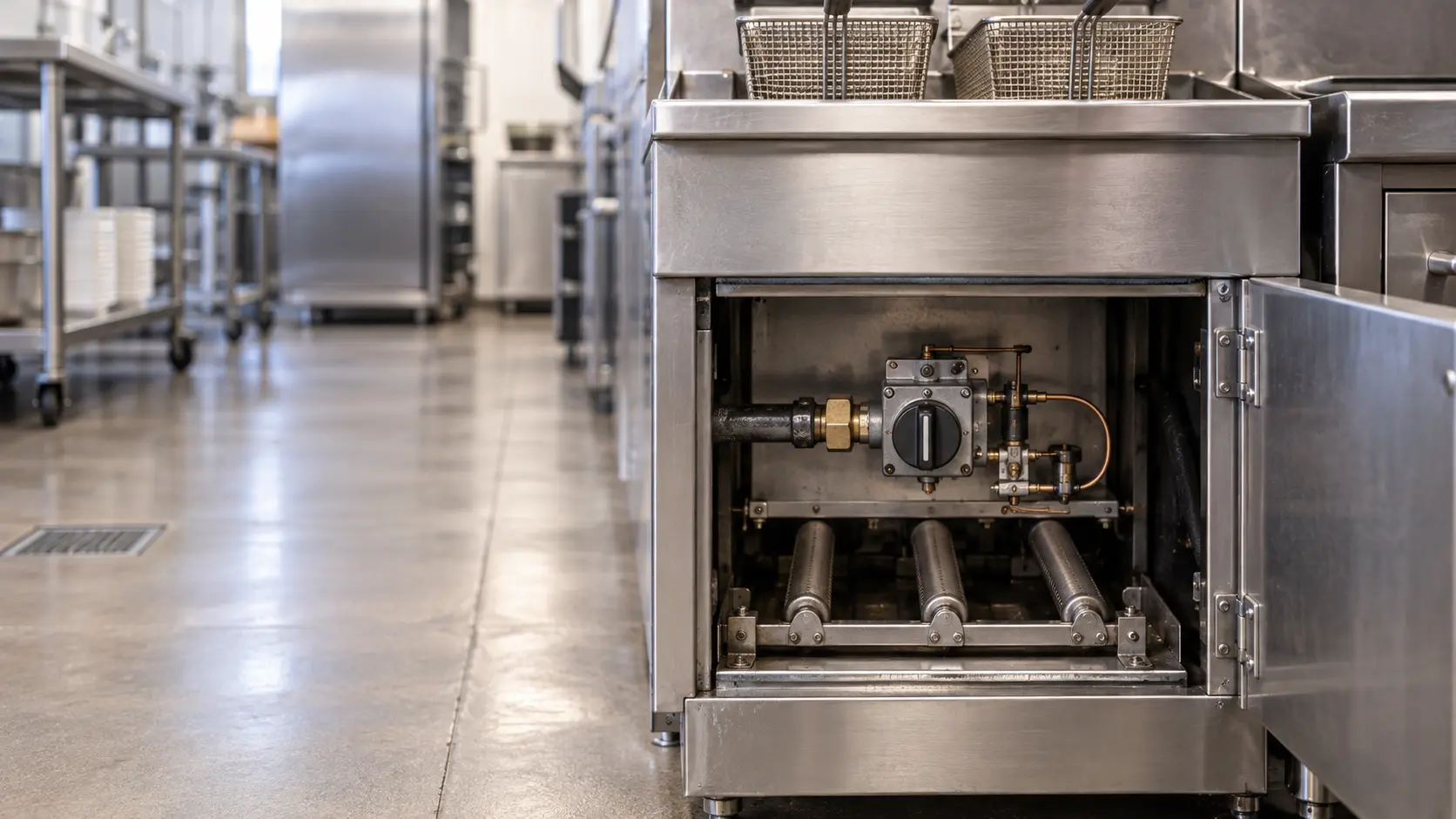

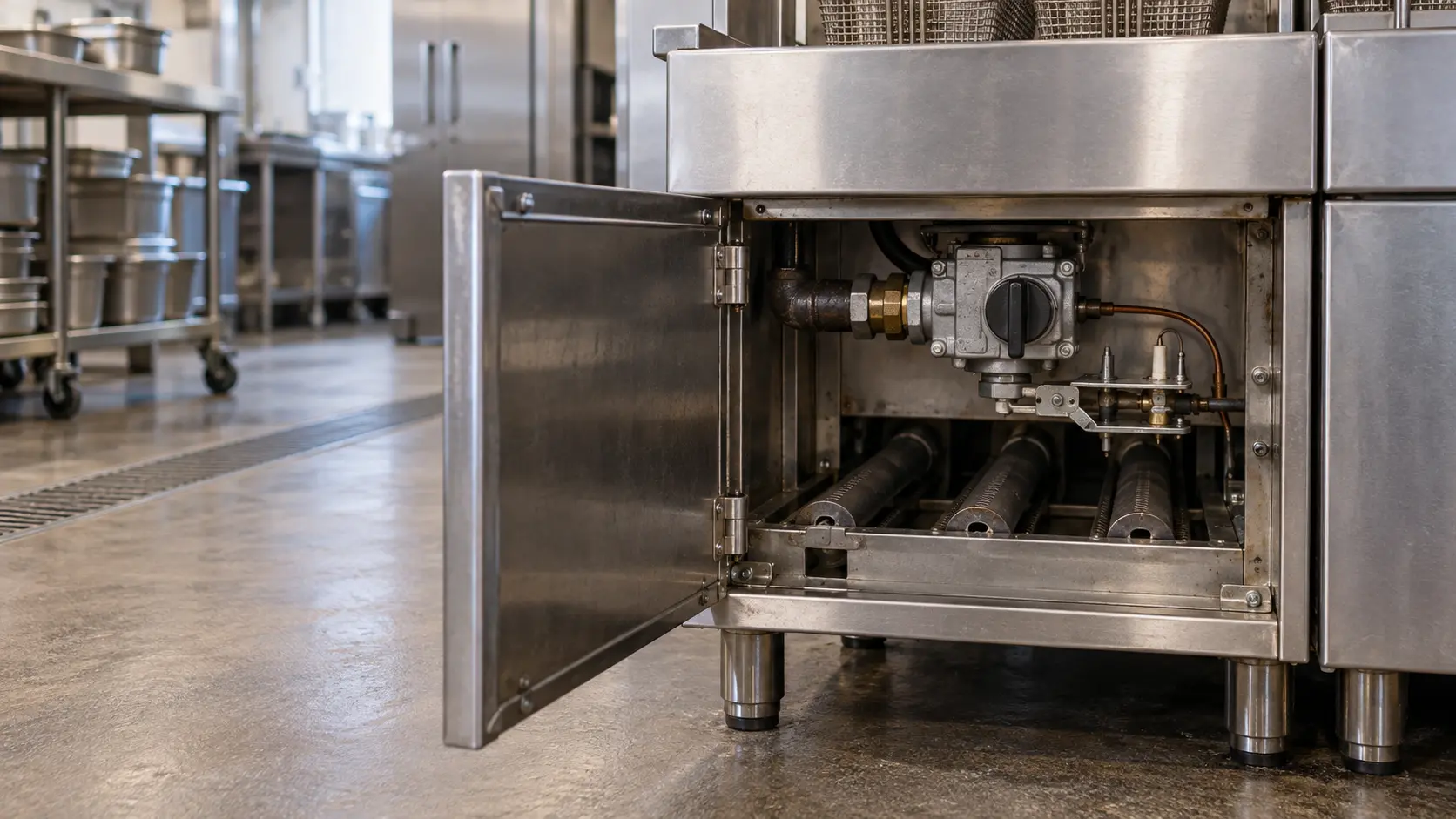

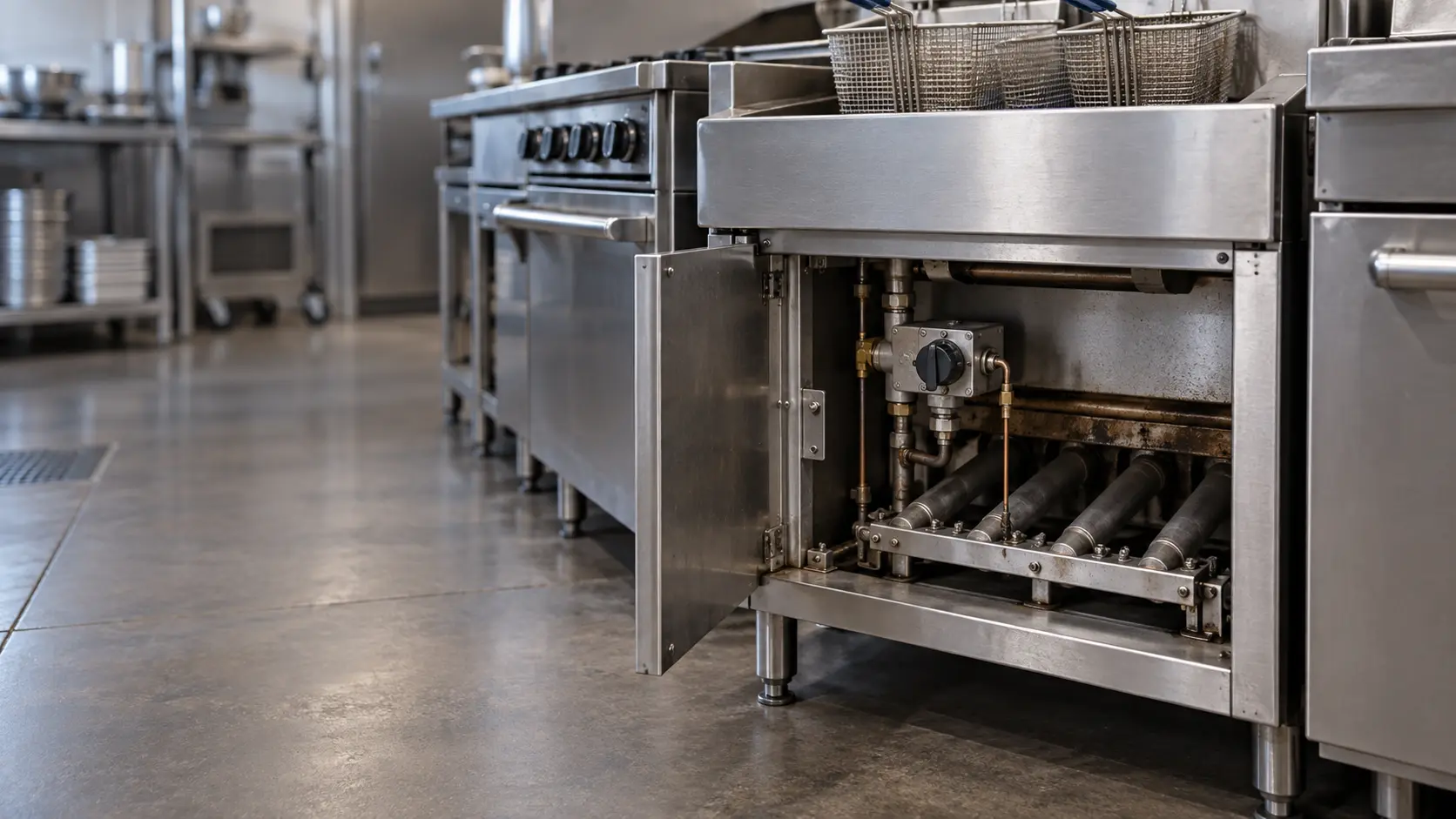

The open lower door of a cold stainless commercial fryer on a restaurant line, the fryer's gas valve, pilot assembly and burner tubes visible below the vat, the gas knob set to off, nobody near the gas.

Vulcan PILOT OUT: the QuickFry pilot flame has gone out

QuickFry VHG fryers with digital or computer controls watch the pilot and show PILOT OUT when it is not lit.

(844) 571-4566

Mon–Sat, 8am–8pm

  • Ignition and gas
  • Commercial cooking line gas repair
  • Source: Vulcan

Book a visit

Three short steps, about a minute.

or call (844) 571-4566

What PILOT OUT
actually means.

QuickFry VHG fryers with digital or computer controls watch the pilot and show PILOT OUT when it is not lit. Without the pilot the burners cannot come on, so the shortening starts to cool.

Vulcan commercial appliance display

What to do when PILOT OUT shows on the commercial appliance

Kind of codeIgnition and gas

The unit tried to light and never proved a flame, or lit and then lost it. On a fryer, a griddle, a combi or a gas tumbler the ordinary reasons come first: the gas valve at the unit left partly closed after cleaning, a quick-disconnect hose not fully seated, an igniter crusted with grease or lint, a flame sensor or thermopile that no longer reads the heat, or a draft from a hood or a door pulling the pilot away. Checking the valve and running the reset the manual names are fair; if you smell gas, get everyone out first, and the gas valve, the sensor and every fitting stay with a technician.

Usually leads toCommercial cooking line gas repair

Griddles, charbroilers, restaurant ranges and hot tops: pilots, burners, orifices, valves and hoses, leak-checked after.

Shows up asCommercial Appliance Error Code on a Combi, Fryer, Dish Machine or Laundry Display

A commercial appliance error code appears as letters or numbers on a combi, fryer, reach-in controller, dish machine or laundry machine display, or as a flashing light or an alarm tone.

MakeVulcan

Vulcan equipment is often seen after close, once the line has been scraped down and every burner has cooled.

SourceVulcan QuickFry VHG-C-D series gas fryers installation and operation manual F-47678 Rev. I, digital (D) and computer (C) controls

Vulcan QuickFry VHG gas fryers with digital (D) or computer (C) controls.

Before you book,
in this order.

Each step comes from Vulcan's own guidance for PILOT OUT on its commercial appliances. Follow it to the end: the last card says whether this is a visit.

01

Turn the power switch off and wait five minutes so any gas in the burner compartment can clear.

02

Switch the fryer back on and let the control try to light the pilot again.

03

Look for a draft from a door, a fan or the hood that could be blowing the pilot out.

04

Book a visit if the pilot will not stay lit, and do not open any gas fittings yourself.

Still there?

It usually turns into commercial cooking line gas repair. Book with the code and the model number.

What not to do

PILOT OUT is not the same as IGNITION LOCKOUT, which reports a gas supply that never lit the burners. It is also different from a tripped high limit, which Vulcan's chart lists separately as a cause of no heat.

What you may
notice with it.

The commercial appliance problems PILOT OUT tends to arrive with. Answer these at the commercial appliance before anyone is booked.

All problems

Before you call

Commercial Appliance Error Code on a Combi, Fryer, Dish Machine or Laundry Display

All 8 causes, cheapest first

It also comes with

Close view of the dark touch control panel on the front of a stainless combi oven in a commercial kitchen, one abstract amber warning indicator glowing among unlit icons, the steam-fogged glass door blurred beside it. Problem

Commercial Appliance Error Code on a Combi, Fryer, Dish Machine or Laundry Display

8 causes, cheapest first

Where PILOT OUT usually leads

Commercial cooking line gas repair.

Cooking line pilot, thermocouple, burner or orifice, safety valve, griddle thermostat, regulator or quick-disconnect hose, leak-checked · low to moderate.
Book a visit What the job involves

Vulcan
commercial appliances.

Vulcan equipment is often seen after close, once the line has been scraped down and every burner has cooled.

Vulcan commercial appliance repair

More Vulcan codes

IGNITION LOCKOUTPROBE OPENPROBE SHORTHIGH TEMPVATFULL? PUSH VE1E3E4E7No HeatE10E32
All 15 Vulcan codes

Ignition and gas on other makes

Alto-Shaam E89Frymaster E28Henny Penny E-20APitco HEAT FAILRational Service 32.1Wolf Commercial IGNITION light
All 12 codes of this kind
A working restaurant cooking line under a stainless ventilation hood, two stainless gas fryers with baskets hanging above the oil, a flat griddle and a combi oven with a glass door beside them, the equipment clearly the subject, a cook seen only from behind and shoulders down at the far end of the line, warm kitchen light, small blue flames visible under the griddle. Vulcan builds this

Commercial cooking equipment

Fryers, griddles, charbroilers, restaurant ranges, convection and combi ovens, steamers, kettles, holding cabinets and toasters, on gas or electric, that make up the hot side of a kitchen line.

In Vulcan's own words

PILOT OUT – If the pilot is out, the digital control displays the following message:
Vulcan QuickFry VHG-C-D series gas fryers installation and operation manual F-47678 Rev. I, digital (D) and computer (C) controls Vulcan QuickFry VHG-C-D series gas fryers installation and operation manual F-47678 Rev. I, digital (D) and computer (C) controls

Every code on this site is taken from the manufacturer's documentation, never from a forum or a parts listing. Vulcan QuickFry VHG gas fryers with digital (D) or computer (C) controls.

Vulcan PILOT OUT commercial appliance repair,
where we come out.

The same visit in every metro below: the code, the model number, and a diagnosis before any part is ordered.

All service areas

Tampa BayFL · 31 areas

OrlandoFL · 30 areas

Miami / South FloridaFL · 47 areas

New York MetroNY · 75 areas

HoustonTX · 36 areas

ChicagoIL · 50 areas

Los AngelesCA · 95 areas

San DiegoCA · 31 areas

San Francisco Bay AreaCA · 74 areas

A restaurant team working a busy commercial kitchen line.
For the heart of your home.

Questions
about PILOT OUT.

Can I clear PILOT OUT myself?
Turn the power switch off and wait five minutes so any gas in the burner compartment can clear. If it comes back, it needs a visit.
Why does the pilot keep going out on my Vulcan QuickFry?
Drafts, a partly blocked pilot orifice and a weak flame sensor are the usual reasons. Drafts are worth ruling out first; the other two need a technician.
How long should I wait before restarting a Vulcan QuickFry?
Vulcan asks for five minutes with the power switch off before starting, so gas that collected in the burner compartment can escape.
Can I keep frying while PILOT OUT shows?
No. The burners cannot light without the pilot, so the shortening will cool below frying temperature.

Back to your everyday

Still showing PILOT OUT?

A booking with a code goes further when it has the code as shown, the model and serial from the data plate, and a word on whether the unit still holds temperature, heats, rinses or spins. With those three, the office can match the likely part to your unit the same day.
